Linear Model Family¶

One linear engine, many business prediction shapes

You already know the core regression equation and how coefficients translate business change into predictions. This notebook shows how that same idea expands from one-feature regression to multiple-feature regression, generalized linear models, and interaction terms.

Why This Family Matters¶

Business teams rarely ask for “a model family.” They ask questions like:

Business question	Useful family member	Why
How does house size affect price?	Simple linear regression	One continuous target, one main feature
How do TV, radio, and social spend combine to predict sales?	Multiple linear regression	One continuous target, several features
Will this customer churn next month?	Logistic regression as a GLM	Binary target, probability output
How many support tickets will arrive tomorrow?	Poisson regression as a GLM	Count target, non-negative output
Does radio work better when TV spend is high?	Linear model with interaction terms	The effect of one feature depends on another

Family Map¶

The previous notebook introduced the baseline equation:

Unexpected character: '' at position 11: \hat{y} = ̲eta_0 + eta_1x…

\hat{y} = eta_0 + eta_1x_1 + eta_2x_2 + \cdots + eta_nx_n

This notebook organizes the variants around three questions: how many features, what kind of target, and whether feature effects combine.

Alt: A business prediction task branches by target type, then by number of features and whether effects interact.

Meet the Main Members¶

Simple Linear

Multiple Linear

GLM

Interactions

Use simple linear regression when one feature is the main driver of a continuous target:

Unexpected character: '' at position 11: \hat{y} = ̲eta_0 + eta_1x

\hat{y} = eta_0 + eta_1x

Example: predict sales from ad spend, or predict house price from square footage.

The coefficient eta_1 answers: “How much does the prediction change for one additional unit of $x$ ?”

Use multiple linear regression when several features jointly predict one continuous target:

Unexpected character: '' at position 11: \hat{y} = ̲eta_0 + eta_1x…

\hat{y} = eta_0 + eta_1x_1 + eta_2x_2 + \cdots + eta_nx_n

Example: predict sales using TV spend, radio spend, social spend, seasonality, and price discount.

Each coefficient is interpreted while holding the other features fixed.

Use a generalized linear model when the target is not a plain continuous number:

Unexpected character: '' at position 43: …color{#1d4ed8}{̲eta_0 + eta_1x…

\color{#7c3aed}{g(\mu)} = \color{#1d4ed8}{eta_0 + eta_1x_1 + \cdots + eta_nx_n}

Color legend: $\color{#7c3aed}{ ext{purple}} =$ transformed target expectation, $\color{#1d4ed8}{ ext{blue}} =$ linear score.

Examples:

Logistic regression: binary outcomes such as churn or purchase
Poisson regression: count outcomes such as tickets, visits, or claims
Gamma regression: positive skewed outcomes such as claim size or time-to-resolution

Use interaction terms when one feature changes the effect of another:

Unexpected character: '' at position 11: \hat{y} = ̲eta_0 + eta_1x…

\hat{y} = eta_0 + eta_1x_1 + eta_2x_2 + eta_3(x_1x_2)

Example: radio spend may work better when TV spend is also high. The interaction term lets the model represent that combined lift while still staying in the linear model family.

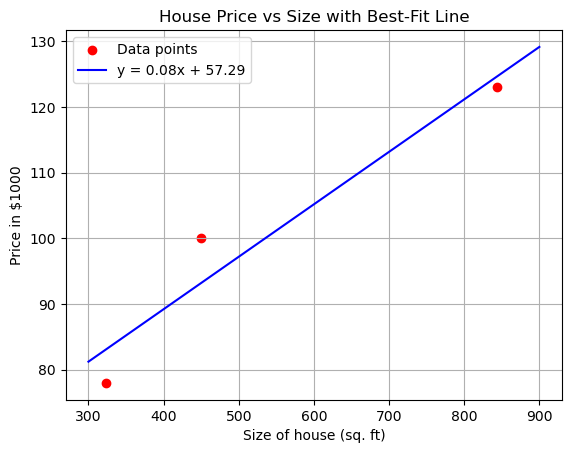

Worked Example - House Size and Price¶

The original notebook used a tiny housing table to connect $y = mx + c$ with the machine-learning notation $h_ heta(x)$ . We will keep that example because it teaches an important bridge:

Size of house in square feet, $x$	Price in $1000,$ y$
450	100
324	78
844	123

The one-feature hypothesis is:

h_ heta(x) = heta_0 + heta_1x

(6)

This is the same line as $y = mx + c$ , where $c = heta_0$ and $m = heta_1$ . When we say the model learns, we mean it adjusts $heta_0$ and $heta_1$ until the line fits the observed data as well as possible under the chosen loss function.

import numpy as np
import matplotlib.pyplot as plt

# Data points from the table
x = np.array([450, 324, 844])  # Size of house in square feet
y = np.array([100, 78, 123])   # Price in $1000

# Design matrix with a bias column x_0 = 1.
# Each row is [1, x_i], so theta = [theta_0, theta_1].
X = np.vstack([np.ones(len(x)), x]).T

# Normal equation: theta = (X^T X)^(-1) X^T y
# This is taught fully in the OLS notebook; here it lets us fit a line directly.
theta = np.linalg.inv(X.T @ X) @ X.T @ y
theta_0, theta_1 = theta

print(f"theta_0 / intercept / c: {theta_0:.2f}")
print(f"theta_1 / slope / m:      {theta_1:.4f}")
print(f"h_theta(x) = {theta_0:.2f} + {theta_1:.4f} * x")

example_size = 600
example_prediction = theta_0 + theta_1 * example_size
print(f"Predicted price for {example_size} sq. ft: ${example_prediction:.1f}k")

x_line = np.linspace(300, 900, 100)
y_line = theta_0 + theta_1 * x_line

fig, ax = plt.subplots(figsize=(7, 4))
ax.scatter(x, y, color="#1d4ed8", s=70, label="Observed houses", zorder=3)
ax.plot(x_line, y_line, color="#b91c1c", lw=2, label="Best-fit line")
ax.scatter([example_size], [example_prediction], color="#047857", s=80, marker="D", label="600 sq. ft prediction", zorder=4)
ax.set_xlabel("House size (sq. ft)")
ax.set_ylabel("Price ($1000)")

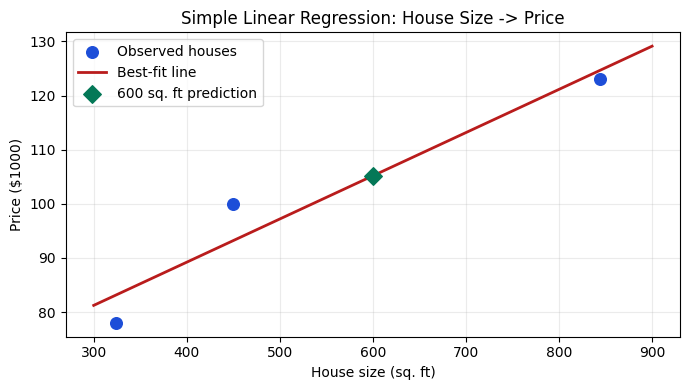

ax.set_title("Simple Linear Regression: House Size -> Price")
ax.grid(True, alpha=0.25)
ax.legend()
plt.tight_layout()
plt.show()

theta_0 / intercept / c: 57.29
theta_1 / slope / m:      0.0798
h_theta(x) = 57.29 + 0.0798 * x
Predicted price for 600 sq. ft: $105.2k

Worked Example - Multiple Channels¶

A marketing team may start with one feature, then add more when the business question becomes richer.

TV spend	Radio spend	Social spend	Sales
100	50	20	15
200	60	25	25
300	80	30	35
400	90	42	46
500	95	55	52

In a multiple linear model, the equation becomes:

Unexpected character: '' at position 21: …	ext{Sales}} = ̲eta_0 + eta_1	…

\hat{	ext{Sales}} = eta_0 + eta_1	ext{TV} + eta_2	ext{Radio} + eta_3	ext{Social}

The important interpretation rule is “holding the other channels fixed.” For example, the TV coefficient estimates the sales change associated with one extra unit of TV spend while radio and social spend stay unchanged.

import numpy as np
import pandas as pd

channels = pd.DataFrame({
    "TV": [100, 200, 300, 400, 500],
    "Radio": [50, 60, 80, 90, 95],
    "Social": [20, 25, 30, 42, 55],
    "Sales": [15, 25, 35, 46, 52],
})

feature_columns = ["TV", "Radio", "Social"]
X_features = channels[feature_columns].to_numpy(dtype=float)
y_sales = channels["Sales"].to_numpy(dtype=float)

# Add the intercept column and solve with least squares.
X_design = np.column_stack([np.ones(len(channels)), X_features])
theta, residuals, rank, singular_values = np.linalg.lstsq(X_design, y_sales, rcond=None)

coefficient_table = pd.DataFrame({
    "term": ["intercept"] + feature_columns,
    "coefficient": theta,
})

print(coefficient_table.to_string(index=False))
print()
print("Prediction for TV=350, Radio=85, Social=35:")
new_campaign = np.array([1, 350, 85, 35], dtype=float)
print(f"${new_campaign @ theta:.1f}k predicted sales")

     term  coefficient
intercept    -1.511706
       TV     0.075485
    Radio     0.208696
   Social    -0.063545

Prediction for TV=350, Radio=85, Social=35:
$40.4k predicted sales

Generalized Linear Models: Same Score, Different Scale¶

A GLM keeps a linear score but uses a link function to connect that score to a target that is not ordinary continuous revenue.

Alt: Features create a linear score; a link function maps that score to a probability, count rate, or positive value.

Examples:

Target	GLM choice	Typical link	Business output
Purchase: yes/no	Logistic regression	Logit	Probability of purchase
Tickets per day	Poisson regression	Log	Expected count
Claim size	Gamma regression	Log or inverse	Positive cost estimate

Interactive - Choose the Family Member¶

The Pyodide cell below is lightweight on purpose: it uses plain Python lists and rules, not heavy ML libraries. Edit the task descriptions to practice matching business problems to model families.

Knowledge Check¶

When do you move from simple linear regression to multiple linear regression?¶

When there are no predictors at allA regression model needs predictors to estimate outcomes.

When more than one feature helps explain a continuous targetCorrect. Multiple linear regression uses several predictors together.

When the model must stop using coefficientsMultiple regression still uses coefficients; it just has more of them.

When the target becomes a sentenceText generation is outside ordinary linear regression.

What is the main benefit of generalized linear models?¶

They remove the need for dataNo learning model can estimate relationships without data.

They extend linear-model ideas to different target distributions and link functionsCorrect. GLMs keep a linear score but adapt the target scale.

They always outperform every nonlinear modelThat is too broad; performance depends on the data and task.

They automatically fix data leakageData leakage is a workflow problem, not something a model family fixes automatically.

What does an interaction term represent?¶

A feature that should be deleted before trainingInteraction terms are intentionally engineered when feature effects combine.

A way to make the target binaryBinary targets point toward logistic regression, not interaction terms by themselves.

A feature whose effect depends on another featureCorrect. An interaction such as TV x Radio lets one channel change the effect of another.

The MSE value after trainingMSE measures prediction error; it is not a feature interaction.

Practice Exercises¶

A product team wants to predict delivery time in minutes from distance only. Name the model family member and write the equation.
A finance team wants to predict loan default: default = 1, paid = 0. Which GLM example fits best, and why is plain linear regression not ideal?
A retailer suspects discount effectiveness depends on customer loyalty tier. Write a linear-model equation that includes an interaction term.
In the house-price example, change example_size to 1000 and rerun the code. Does the prediction feel reasonable given only three training observations?

One Possible Solution

Why This Works

Simple linear regression: \hat{ ext{minutes}} = eta_0 + eta_1 ext{distance}.
Logistic regression as a GLM, because the target is binary and the business needs a probability.
\hat{ ext{sales}} = eta_0 + eta_1 ext{discount} + eta_2 ext{loyalty} + eta_3( ext{discount} imes ext{loyalty}).
A 1000 sq. ft prediction is extrapolation beyond the observed examples. Treat it as a rough guess, not a reliable valuation.

Summary and Next Bridge¶

Concept	Takeaway
Simple linear regression	One continuous target, one feature
Multiple linear regression	One continuous target, many features
GLM	Linear score adapted to non-standard targets through a link function and distribution
Interaction term	An engineered feature that lets one feature modify another feature’s effect
Vectorized notation	The same line equation scales to matrices: \hat{\mathbf{y}} = \mathbf{X}oldsymbol{ heta}

Linear models become useful only after we can measure how wrong their predictions are. Next, move to Mean Squared Error, where the book turns prediction mistakes into the objective that linear regression tries to minimize.
